Our Carbon Steel Dresser Coupling series includes flexible step, universal, and PVC pipe-specific models, engineered for reliable pipe connections. Made from high-grade carbon steel, these couplings offer exceptional durability, corrosion resistance, and easy installation, ideal for industrial, commercial, and municipal piping systems. Compliant with international standards, customizable, and backed by a 10-year warranty.
Product Overview
RUNXING’s Carbon Steel Flexible Step Dresser Coupling for Pipes is a premium piping solution designed to address the critical needs of secure and flexible pipe connections. As a leading manufacturer, we specialize in producing high-performance couplings that integrate robustness with versatility, catering to diverse industrial requirements. Our product line encompasses the Carbon Steel Dresser Coupling for PVC Pipes, Carbon Steel Universal Dresser Coupling for Pipes, and other specialized variants, all crafted from top-quality carbon steel to ensure long-lasting performance in demanding environments.
The core advantage of our Dresser Carbon Steel Couplings lies in their ability to accommodate pipe misalignments, absorb vibrations, and provide leak-proof connections, significantly reducing maintenance costs and downtime. Whether for water supply, oil and gas transmission, or chemical processing, these couplings deliver consistent reliability, making them the preferred choice for global purchaser.
Technical Specifications
Core Material & Construction
- Material: High-grade carbon steel (customizable to SUS304/SUS316 upon request)
- Design Type: Flexible step, universal, and PVC pipe-specific configurations
- Pressure Rating: Up to 1000 PSI (varies by size and model)
- Temperature Range: -40°C to 250°C (-40°F to 482°F)
- Pipe Compatibility: Suitable for steel, PVC, and other industrial pipes (DN15 to DN300)
Dimensions & Tolerances
- Outer Diameter: 25mm to 350mm (based on pipe size)
- Length: 50mm to 200mm (customizable)
- Weight: 0.5kg to 25kg (varies by dimensions)
- Thread Standard: BSP, NPT, or custom threads
- Tolerance: Complies with ANSI/ASME B16.9 standards

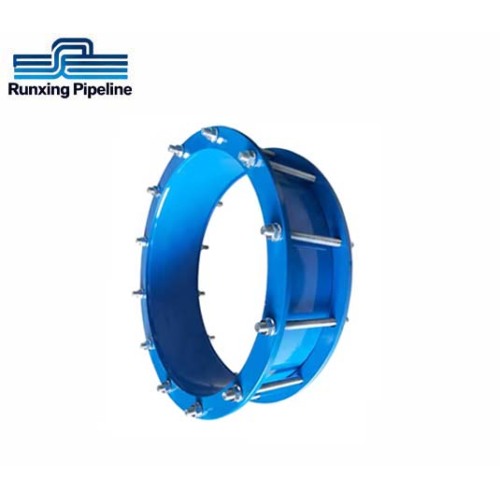

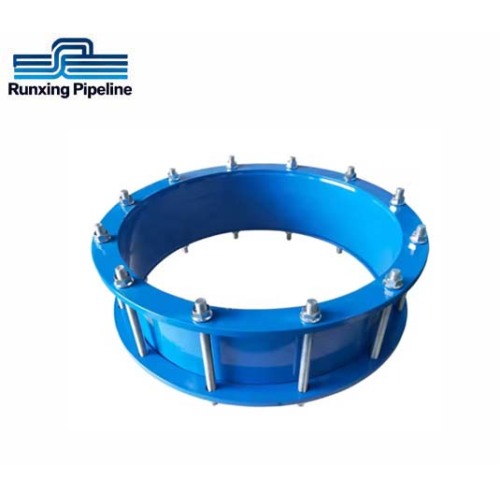

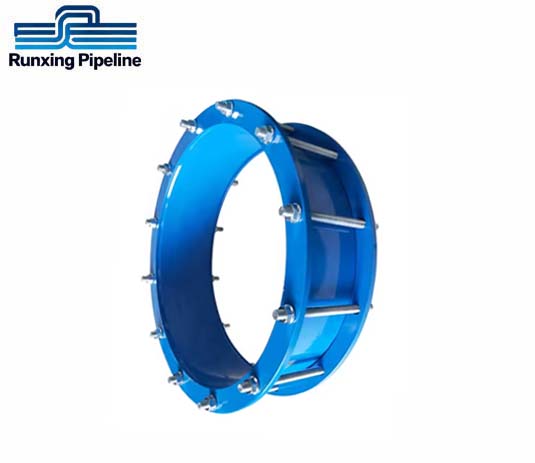

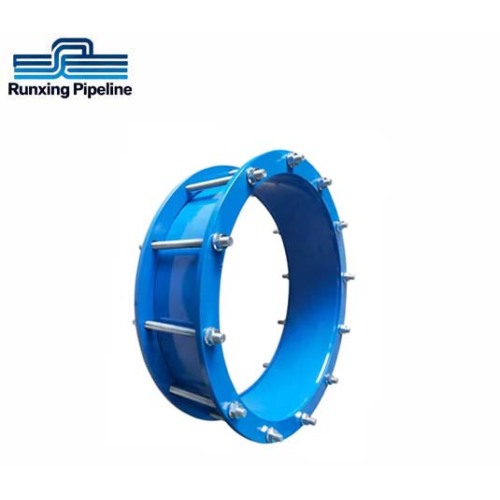

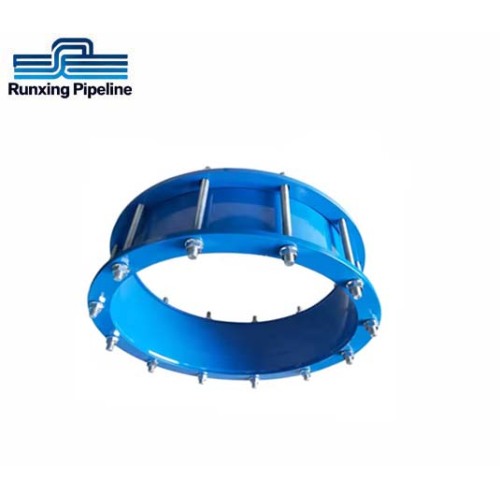

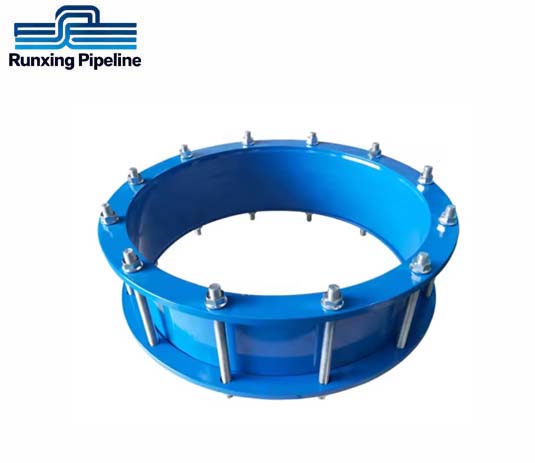

Product Images
Product Features
Key Features
- Superior Durability: High-carbon steel construction resists corrosion, wear, and extreme temperatures, ensuring a 10-year mechanical warranty.
- Flexible Design: The carbon steel flexible step dresser coupling accommodates axial, angular, and lateral misalignments, reducing pipe stress.
- Leak-Proof Seal: Precision-engineered gaskets provide airtight and watertight connections, preventing fluid loss in critical applications.
- Easy Installation: Tool-free assembly with step-by-step guidance, minimizing labor time and installation costs.
- Versatile Compatibility: Suitable for PVC pipes, industrial steel pipes, and various piping materials, enhancing application scope.
Our Competitive Advantages
Unlike standard couplings, our carbon steel universal dresser coupling integrates advanced compensation technology, allowing for greater flexibility without compromising strength. We adhere to strict quality control measures throughout production, with every unit inspected to meet EN/CE, UL, and ANSI standards. Our 18 years of manufacturing experience ensures that each Dresser Coupling With Carbon Steel delivers consistent performance, outperforming competitors in durability and reliability.
How to Use the Product
- Prepare the pipe ends by cleaning them thoroughly to remove dirt, rust, or debris that may affect the seal.
- Select the appropriate carbon steel dresser coupling model based on pipe size and application requirements (e.g., PVC pipes require the dedicated PVC coupling variant).
- Slide the coupling onto one pipe end, ensuring the gasket is properly positioned inside the coupling.
- Align the second pipe end with the first, ensuring minimal misalignment (within the coupling’s tolerance range).
- Tighten the coupling’s bolts or clamps evenly using a torque wrench, following the recommended torque specifications for your pipe size.
- Inspect the connection for leaks by conducting a pressure test before putting the system into operation.
Application Scenarios
Our carbon steel dresser coupling series is widely used across multiple industries, providing reliable solutions for diverse piping needs:
- Municipal Engineering: Water supply and drainage systems, sewage treatment plants, and pipeline rehabilitation projects.
- Oil & Gas Industry: Transmission pipelines for crude oil, natural gas, and refined products, both onshore and offshore.
- Chemical Processing: Corrosive fluid transfer systems, where durable and chemical-resistant couplings are essential.
- Construction: HVAC systems, fire protection pipelines, and building services piping in commercial and industrial buildings.
- Agriculture: Irrigation systems, ensuring efficient water distribution with minimal maintenance.
These couplings deliver tangible value to purchaser by reducing maintenance costs (via long service life), improving operational efficiency (via quick installation), and enhancing system safety (via leak-proof design). For example, in chemical plants, our corrosion-resistant couplings eliminate the need for frequent replacements, cutting downtime by up to 30%.
Customization Options
Size Customization: Available in custom diameters (DN15 to DN300) and lengths to match specific pipe requirements.
Material Variations: Option to use SUS304, SUS316, or SUS201 stainless steel in addition to standard carbon steel.
Thread & Connection Types: Custom thread standards (BSP, NPT, etc.) and specialized connection designs for unique applications.
OEM/ODM Services: Full support for brand labeling, packaging customization, and design modifications to meet client specifications.
Production Process
Our production process follows strict quality control measures to ensure consistent product performance:
- Material Sourcing: High-grade carbon steel and stainless steel are sourced from certified suppliers, with raw material inspection.
- Cutting & Forming: Precision cutting and forging to achieve the desired coupling shape and dimensions.
- Machining: CNC machining for accurate thread creation and surface finishing.
- Assembly: Integration of gaskets and components, with manual inspection at each assembly stage.
- Quality Testing: Pressure testing, leak detection, and dimensional verification to meet standards.
- Packaging: Secure packaging to prevent damage during transportation, with optional custom packaging.
Every stage of production is monitored by our quality management system, ensuring that each carbon steel universal dresser coupling meets our high standards.
