PTFE Lined Bellow Expansion Joint

View:

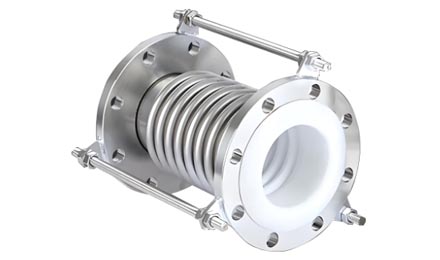

High Quality Customizable PTFE Lined Bellow Expansion Joint
- Brand: RunXing
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Product Overview RUNXING’s High Quality Customizable PTFE Lined Bellow Expansion Joint is an essential component for industrial pipeline systems, engineered to absorb thermal expansion and contraction, reduce pipeline vibration, and compensate for axial, lateral, and angular misalignment. At its core, this Flange...

Contact Now
Negative Pressure Resistant PTFE Corrugated Expansion Joint
- Brand: RunXing
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1
- Certificate: ISO9001
Product Overview RUNXING's PTFE Lined Bellow Expansion Joint is a high-performance pipeline compensation component designed for harsh industrial environments. Integrating advanced material technology and precision manufacturing, this product effectively absorbs thermal expansion and contraction, vibration, and...

Contact Now
PTFE Lined Metal Bellow Expansion Joints For Industrial
- Brand: RunXing
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1
- Certificate: ISO9001
Product Overview RUNXING's PTFE Lined Metal Bellow Expansion Joint is a high-performance industrial component designed to absorb thermal expansion, vibration, and misalignment in piping systems. Crafted with premium materials and advanced manufacturing techniques, this product ensures reliable operation even in...

Contact Now
Smooth Surface Stainless Steel PTFE Bellow Expansion Joint
- Brand: Xinhua Feng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1
- Certificate: ISO9001
The PTFE lined bellow expansion joint is a type of component in pipeline equipment, widely utilized in industries such as food, pharmaceuticals, beverages, and papermaking for liquid concentration processes. The feed liquid enters the PTFE lined rubber joint from the top and is uniformly distributed into a film shape...

Contact Now
Industrial Lined Expansion Joint for Aggressive Acids
- Brand: Xinhua Feng
- Packaging: wooden case packing
- Supply Ability: 100000 Piece/ per Month
- Min. Order: 1 Piece/Pieces
- Certificate: ISO9001
Synergy of Industrial Pipeline Components: Ensuring Efficiency and Reliability in Complex SystemsIn the intricate network of industrial pipeline systems, the seamless collaboration of specialized components is key to maintaining efficiency, safety, and longevity. From absorbing vibrations to managing thermal...

Contact Now

China PTFE Lined Bellow Expansion Joint Suppliers

A PTFE Lined Bellow Expansion Joint combines a metal bellows core with a seamless PTFE lining, engineered for corrosive pipeline systems requiring both displacement compensation and chemical resistance. Its structure features a stainless steel bellows with convolutions for flexibility, lined internally with PTFE—an inert material resistant to acids, alkalis, and solvents. This dual design offers the strength of metal bellows and the chemical protection of PTFE, ideal for harsh industrial environments.

The PTFE lining ensures a smooth, non-stick inner surface, preventing media buildup and contamination, while the metal bellows absorbs axial, lateral, and angular movements from thermal expansion or vibration. It comes with Flange or welded ends: flanges simplify installation, while welded connections enhance leak tightness for high-pressure applications. This makes it suitable for chemical processing, pharmaceutical, and wastewater treatment where standard metal joints may corrode.

In system integration, it works synergistically with components: a Rubber Expansion Joint dampens vibrations in lower-corrosion zones, while this lined joint handles corrosive media displacements. A Flexible Metal Hose adds routing flexibility. A Flange Adaptor bridges varying flange specs, ensuring compatibility. For maintenance, a Dismantling Joint eases access, and a Duckbill Check Valve prevents backflow of corrosive fluids.

Key advantages include chemical inertness, durability, and precise displacement control. The PTFE lining meets hygiene standards, suiting food-grade applications. The metal bellows withstands high pressures and temperatures, outperforming Rubber Joints in extreme conditions. By balancing strength, flexibility, and corrosion resistance, it ensures reliable operation in aggressive environments, proving essential for safe, efficient pipeline performance in critical industrial infrastructure.

PTFE Lined Bellow Expansion Joint

‌PTFE lined bellow expansion joint‌ is a special design that lines the inside of the bellows with polytetrafluoroethylene (PTFE) material. PTFE lined bellow expansion joints have excellent high temperature resistance, corrosion resistance and aging resistance, are widely used in various piping systems, can withstand high temperature and chemical corrosion, and have a long service life‌. The main structure of the PTFE lined bellows expansion joint consists of an outer metal bellows and an inner PTFE lining. This design allows the expansion joint to move and rotate easily in various environments, while absorbing and releasing heat and vibration, reducing stress in the piping system and protecting the piping system from damage‌.

Application scenarios

chemical, pharmaceutical, food processing, thermal industry, etc.

Features

corrosion resistance, high temperature resistance, aging resistance and high elasticity

Product Detail

PTFE lined bellow expansion joints are mainly composed of bellows, PTFE lining, connecting flange (or other connection methods such as welding pipes) and possible limit devices.

Bellows: As the main working element of the expansion joint, it absorbs the dimensional changes of the pipeline caused by thermal expansion and contraction through its flexible deformation.

The PTFE lining fits tightly to the inner wall of the bellows, and uses the corrosion resistance, high temperature resistance and aging resistance of PTFE materials to effectively protect the medium flowing through the pipeline from corrosion.

The connecting flange is used to firmly connect the expansion joint to the pipeline system.

CUSTOMER

VOICE

WHAT A CLIENT SAY?

PTFE lined bellow expansion joints have excellent corrosion resistance. Because PTFE (polytetrafluoroethylene) materials have extremely low chemical activity and can withstand erosion by a variety of corrosive media such as strong acids, strong alkalis, and organic solvents, this expansion joint is particularly suitable for highly corrosive pipeline systems. Customer feedback shows that in the chemical, pharmaceutical, food processing and other industries, PTFE lined bellow expansion joints can effectively prevent the medium from corroding the metal bellows and extend the service life of the equipment.

xhf

Application areas

The application areas of pipelines are very wide, mainly including municipal engineering, building water supply and drainage, industrial production, agricultural irrigation, new energy and other fields.

FAQ

Important things you should know

How to choose a suitable PTFE lined bellow expansion joint?

It is necessary to comprehensively consider multiple factors such as working conditions, material quality, corrugated design, and processing technology.

What are the common compensation range errors of corrugated compensators?

Ignoring reserved space, wrong installation direction, improper welding method, wrong calculation of compensation amount, improper material selection, design and selection errors, and installation deviation.

How to choose a PTFE lined bellow expansion joint suitable for a specific medium environment?

By understanding its applicable medium, the impact of the medium on performance, and how to choose a suitable compensator, its role in the pipeline system can be better played.

The influence of the corrugation thickness of the compensator on its performance is mainly reflected in?

Stiffness and flexibility; pressure bearing capacity; stability; fatigue life; manufacturing process.
