ANSI Flange

(Total 5 Products)

Stainless Steel Welding Neck Flange

Get Latest Price

Brand:Xinhuafeng
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air
Packaging:wooden case packing
Supply Ability:100000 Piece/ per Month
Place of Origin:China

Long Neck ANSI Flange: High-Performance Pipeline Connection for Versatile Industrial ApplicationsThe long neck ANSI flange, primarily referring to the slip-on welding flange, stands as a cornerstone in pipeline connection systems, valued for its...

Contact Now

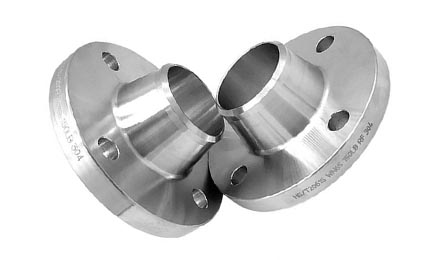

High-Pressure Short Weld Neck Flange

Get Latest Price

Brand:Xinhuafeng
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air
Packaging:wooden case packing
Supply Ability:100000 Piece/ per Month
Place of Origin:China

Introduction to Short Neck ANSI FlangeThe short neck ANSI flange, a type of American standard flange, mainly adheres to the flange standards established by the American National Standards Institute (ANSI). It serves as a key component for...

Contact Now
Industrial Short Neck Threaded Flange

Get Latest Price

Brand:Xinhuafeng
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air
Packaging:wooden case packing
Supply Ability:100000 Piece/ per Month
Place of Origin:China

Short Neck Threaded ANSI Flange: Compact Connection Solution for Space-Constrained PipingThe short neck threaded ANSI flange emerges as a specialized component in American standard piping systems, defined by its compact structure and threaded...

Contact Now
Short Weld Neck Flange

Get Latest Price

Brand:Xinhuafeng
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air
Packaging:wooden case packing
Supply Ability:100000 Piece/ per Month
Place of Origin:China

Short Neck ANSI Flange: High-Pressure Sealing Solution for Industrial PipingThe short neck ANSI flange stands as a cornerstone of American standard piping systems, engineered to meet the rigorous specifications set by the American National...

Contact Now
Internal Thread Pipe Flange

Get Latest Price

Brand:Xinhuafeng
Min. Order:1 Piece/Pieces
Model No:ANSI
Transportation:Ocean,Land,Air
Packaging:wooden case packing
Supply Ability:100000 Piece/ per Month
Place of Origin:China

ANSI Standard Threaded Flanges: Efficient Connection Solution for Industrial PipingThe ANSI Standard Flanges with Threaded emerges as a reliable industrial component for pipe connections, designed in strict accordance with ANSI/ASME B16.5 standards...

Contact Now

ANSI Flange refers to pipeline flanges manufactured according to standards set by the American National Standards Institute (ANSI), ensuring uniform dimensions, pressure ratings, and performance across industrial fluid systems. These flanges serve as critical connectors for pipes, valves, and equipment, enabling standardized, leak-tight connections in applications ranging from chemical processing to oil and gas industries.

Designed with precise dimensional specifications, Ansi Flanges feature consistent bolt hole patterns, Flange face finishes, and pressure classes (150#, 300#, 600#, etc.), allowing interchangeability between components from different manufacturers. Common types include ANSI Weld Neck Flanges with reinforced necks for high-pressure (300#+) systems, Slip-On Flanges for easy installation in low-pressure (150#) applications, and Blind Flanges to seal pipe ends. Socket Weld Flanges suit small-diameter high-pressure lines, while Lap Joint Flanges offer alignment flexibility.

Materials align with operational demands: carbon steel (A105) for general industrial use with oils, gases, or water; stainless steel (316) for corrosive media in chemical or marine environments; and alloy steel (A182 F22) for high-temperature systems like power plants. Gasket compatibility is critical, with ANSI standards specifying face types (raised face, flat face) to match gasket materials—rubber for low pressure, PTFE for chemicals, or metal for extreme conditions.

In system integration, ANSI flanges ensure seamless compatibility with ANSI-standard components: they pair with ANSI Valves (butterfly, gate) for controlled flow, connect to Bellow Expansion Joints to absorb thermal movement, and work with Flange Adaptors to bridge ANSI and non-ANSI systems. Dismantling Joints with ANSI flanges simplify maintenance in standardized pipelines.

Key advantages include global interchangeability, reliability, and safety. Standardized dimensions reduce installation errors, while pressure-class ratings ensure performance under specified conditions. They facilitate easy component replacement, minimizing downtime. By providing a universal connection framework, ANSI flanges form the backbone of North American industrial networks, ensuring efficient, compliant fluid transport across diverse high-pressure and high-temperature applications.

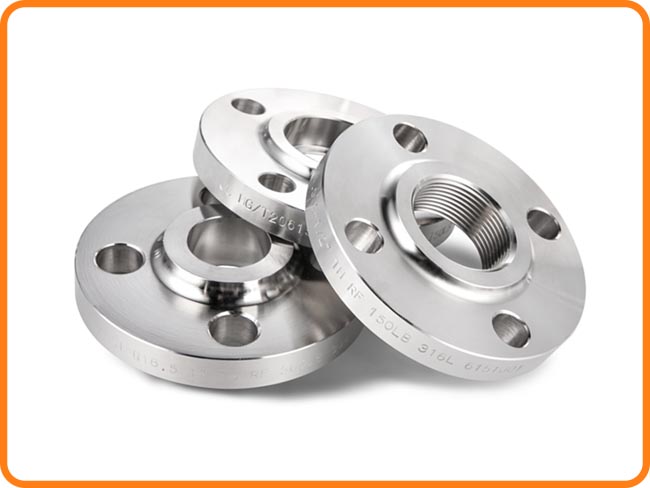

ANSI Flange

American standard flange is a part used to connect pipes and pipes, usually used in industrial piping systems. ‌ It can be made of carbon steel, stainless steel or alloy steel, and common manufacturing methods include forging and casting. American standard flange is called steel pipe flange in the American system. It is an important connection component in the pipeline system to ensure the sealing and connection of the pipeline. ‌American standard flange plays an important role in industrial applications and is usually used to connect the inlet and outlet of equipment, such as reducer flange. It is connected by bolts and gaskets to ensure the tight connection and sealing between pipelines or equipment. The thickness of flanges and the type of bolts used for different pressures are different. Usually, low-pressure pipelines use threaded flanges, while high-pressure pipelines use welded flanges.

Material

carbon steel, stainless steel, alloy steel

Classification

WN, SO, BL, TH, LJ, SW

Product Detail

The composition of American standard flange mainly includes flange body, bolts and nuts, gaskets and other accessories (if any). These parts work together to ensure the stability and sealing performance of American standard flanges in pipeline systems.

Used to connect pipes. Metal rings are usually made of steel materials, such as carbon steel, stainless steel or alloy steel, etc. The choice of material depends on the working pressure, temperature and characteristics of the medium.

The gasket is located between the two flanges and plays a sealing role. Gaskets are usually made of rubber, graphite, metal or other suitable materials to ensure an effective seal at the pipe joint.

Studs and nuts are used to connect the two flanges tightly together to maintain the sealing effect of the gasket. Studs and nuts are usually made of high-strength materials to ensure the firmness and reliability of the connection.

CUSTOMER

VOICE

WHAT A CLIENT SAY?

The processing procedures of the American standard flange are strict, the dimensions are precise, and the surface is smooth to ensure a perfect fit with the pipeline. Customers appreciate its exquisite craftsmanship. The design of the American standard flange strictly follows the American standard, has strong pressure bearing capacity and reliable sealing, and can cope with various complex working conditions. Customers highly evaluate the rationality of its design. The American standard flange adopts bolt connection, which is easy to install and quick to maintain. Customers are satisfied with its installation convenience.

xhf

Application areas

The application areas of pipelines are very wide, mainly including municipal engineering, building water supply and drainage, industrial production, agricultural irrigation, new energy and other fields.

FAQ

Important things you should know

What is the standard of the American standard flange?

ANSI/ASME B16.5, B16.47 and B16.36, etc.

Pressure ratings of American standard flanges?

From 150 to 250 ratings of ANSI/ASME B16.5 to 75 to 900 ratings of ANSI/ASME B16.47, users can choose the appropriate pressure rating according to specific working conditions to ensure the safe operation of the system.

Connection methods of American standard flanges?

Welded neck flanges, blind flanges, threaded flanges, etc.

Material selection of American standard flanges?

Common materials include carbon steel, stainless steel, alloy steel, etc., which can meet the special requirements of different industries for flanges such as corrosion resistance and high temperature resistance.
