What are the specific functions of bellow expansion joints during installation and use?

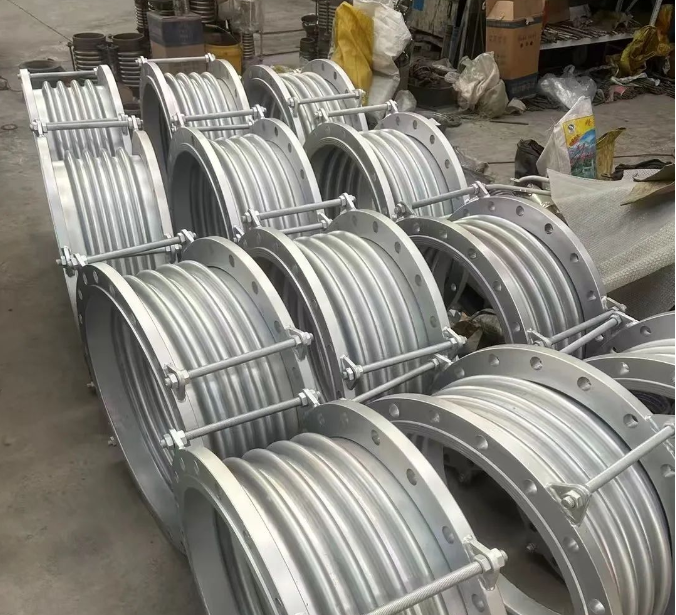

Corrugated Compensators are commonly used compensation components in pipeline systems. They achieve several key functions through the effectiveof their main working element, the bellow:

1.Absorbing thermal expansion and contraction: Bellow Expansion Joint can compensate for dimensional changes in pipelines caused by temperature variations, namely thermal expansion and contraction, thereby reducing stress concentration and potential damage within the pipeline system.

2.Compensating for displacement: In addition to thermal expansion and contraction, bellow compensators can also compensate for axial, lateral, and angular displacements of pipelines. These displacements may arise from factors such as pipeline installation errors, mechanical vibrations, or earthquakes.

3.Vibration damping and noise reduction: The flexible structure of bellow compensators helps absorb and isolate vibrations, reducing their impact on the pipeline system and surrounding equipment while also lowering noise levels during operation.

4.Protecting equipment: Installing bellow compensators at the inlets and outlets of equipment with stringent force requirements in pipeline systems can effectively reduce the forces exerted by the pipelines on the equipment, protecting it from damage.

5.Enhancing the sealing performance of Flange connections: By reducing stress at flange connections, bellow compensators contribute to improving the sealing performance of these connections and reducing the risk of leakage.

6.Adapting to environmental changes: In cases of ground subsidence or other environmental changes, bellow compensators can adapt to these changes through their flexible characteristics, protecting the integrity of the pipeline system.

When installing and using Expansion Bellows, it is essential to follow correct operating procedures to ensure they can fulfill their expected compensation and protection functions and extend the service life of the pipeline system.
